Electric Vehicles and Golf Carts

OBODUS is Brand of Seven Ocean Supply Co., Ltd. was founded 2013, and it's a leading manufacturer specialized in designing and manufacturing 4-wheel electric vehicles, includes: electric golf cart, mini electric trackless trains, electric double decker mini London bus, electric mini fire truck and ambulances, electric utility car, electric personal carrier, electric shuttle bus, electric industrial car, various customized electric vehicles based on standard ones, etc... It has a workshop area of 10,000 square meters with lines inside. OBODUS takes quality as its lifeline. OBODUS chooses the most top quality key component parts (Battery, Controller) to ensure the performance of its vehicles. In all, Obodus follows International Quality Standard to produce, control and inspect its electric vehicles. With effective management and specialized talents, OBODUS is dedicated to offering top quality products with competitive price and first class after-sales service.

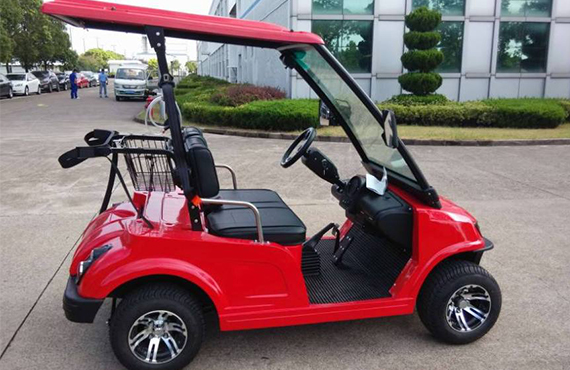

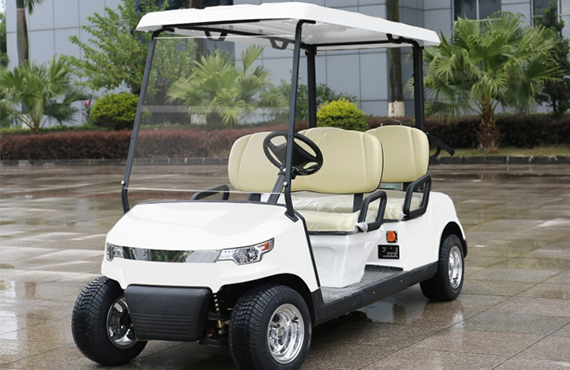

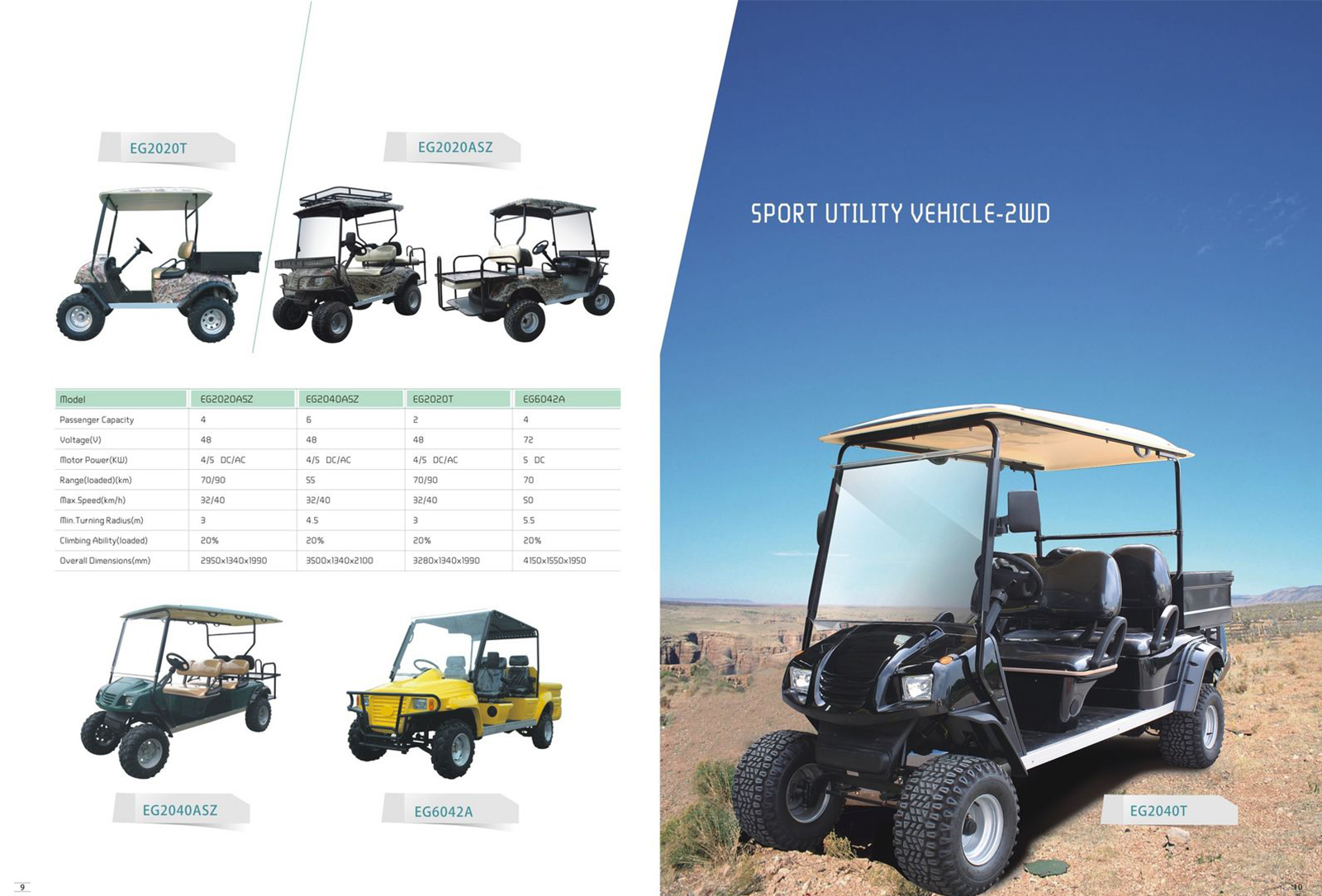

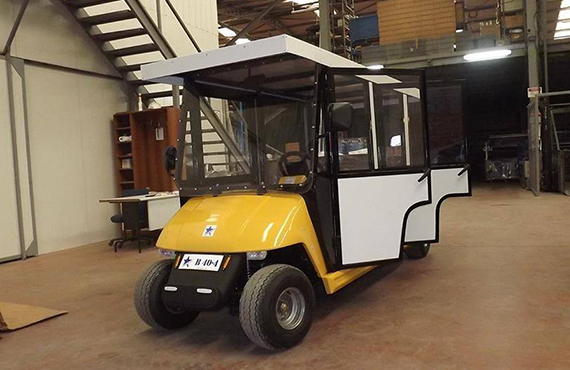

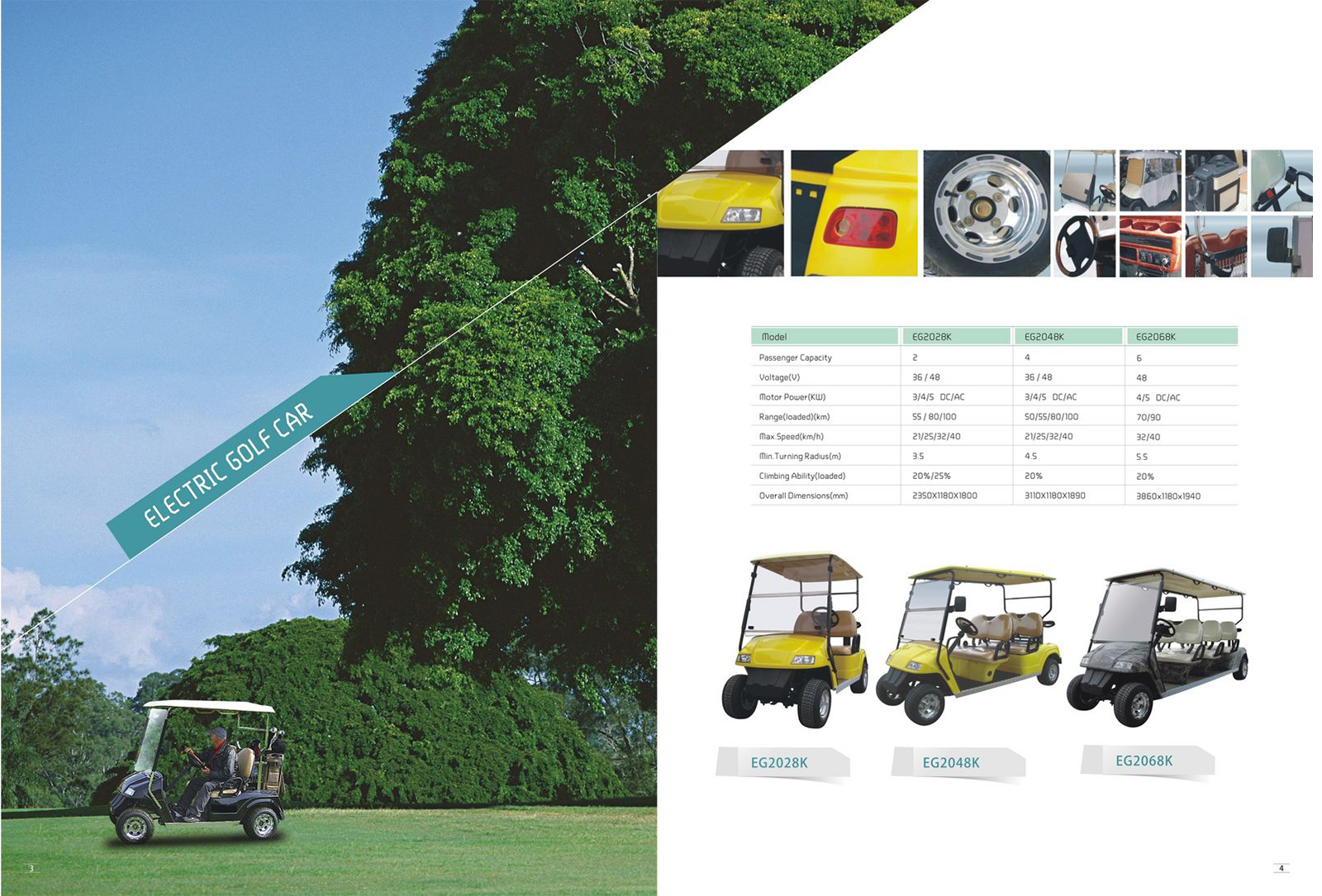

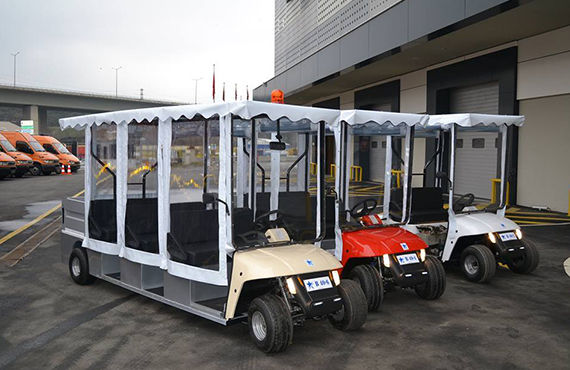

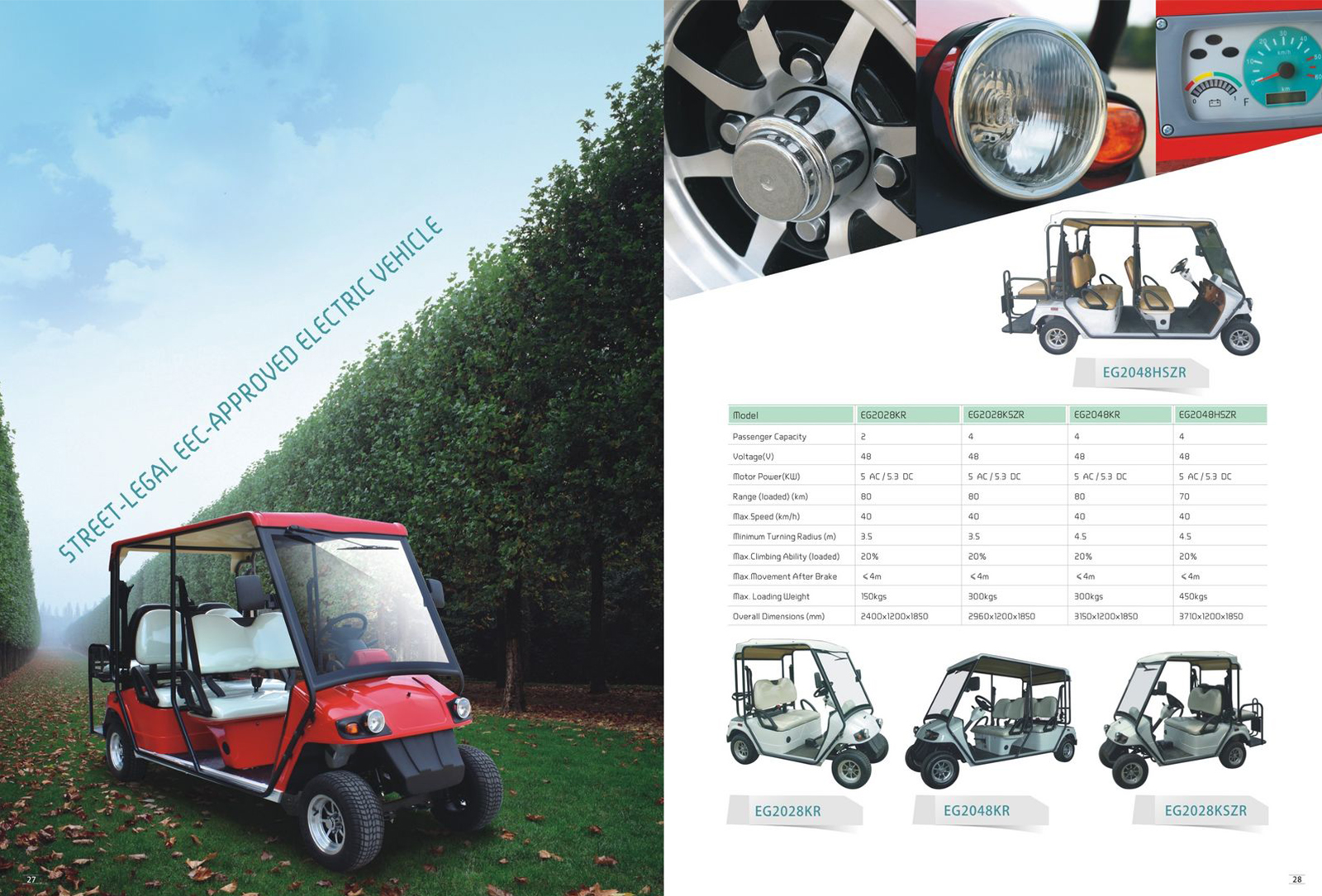

1) Electric Golf Carts

Obodus Golf carts produced and developed particularly for golf courses, show an optimum performance in terms of speed, silence and functionality, hence they present high comfort in a reformist way. As addition to the this Golf carts can be used in Airports, Hospitals, Municipalities and many other area. Battery powered electric golf carts are produced with various features according to customer needs. With very low running costs, long distance achieved by single charge, easy useage.

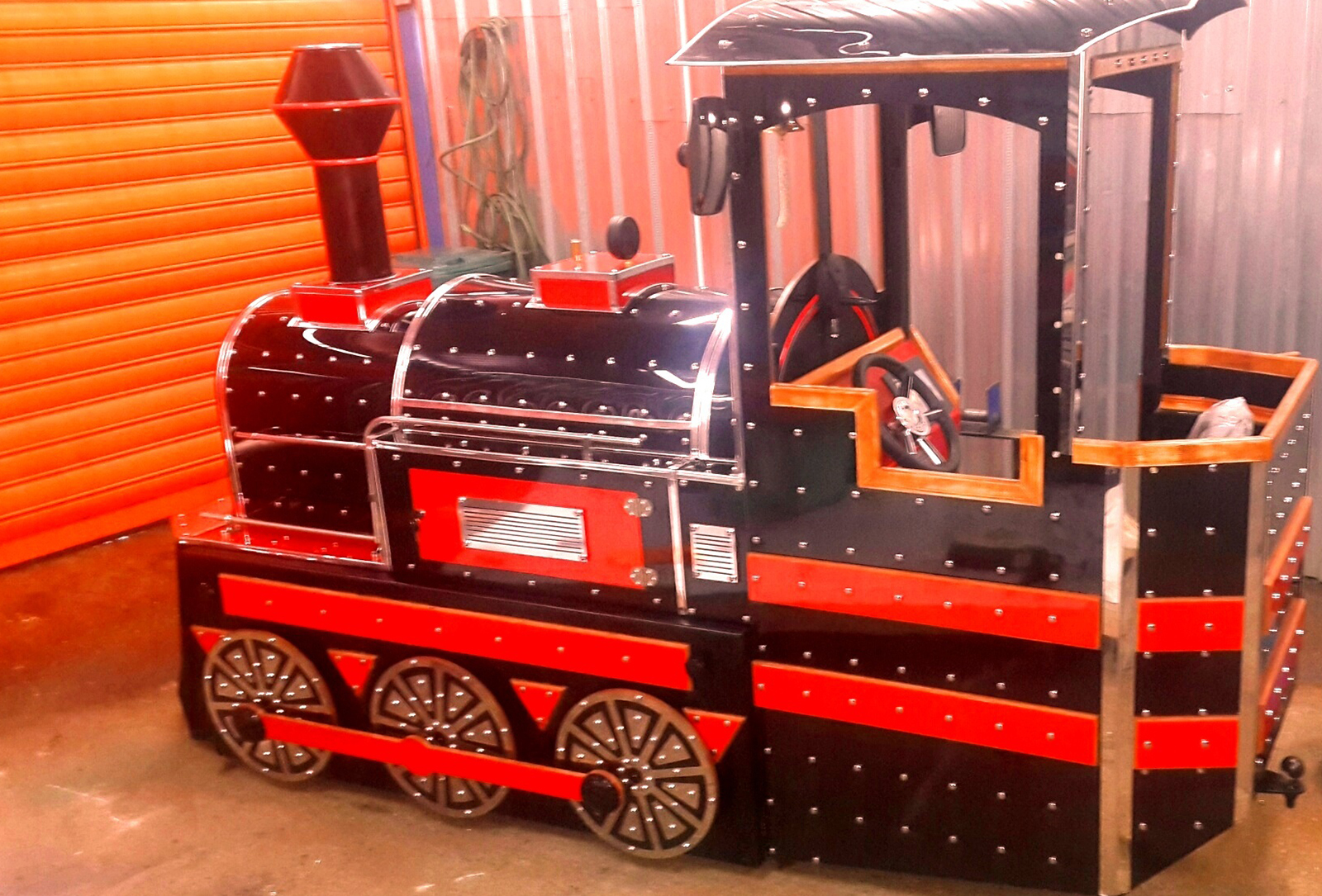

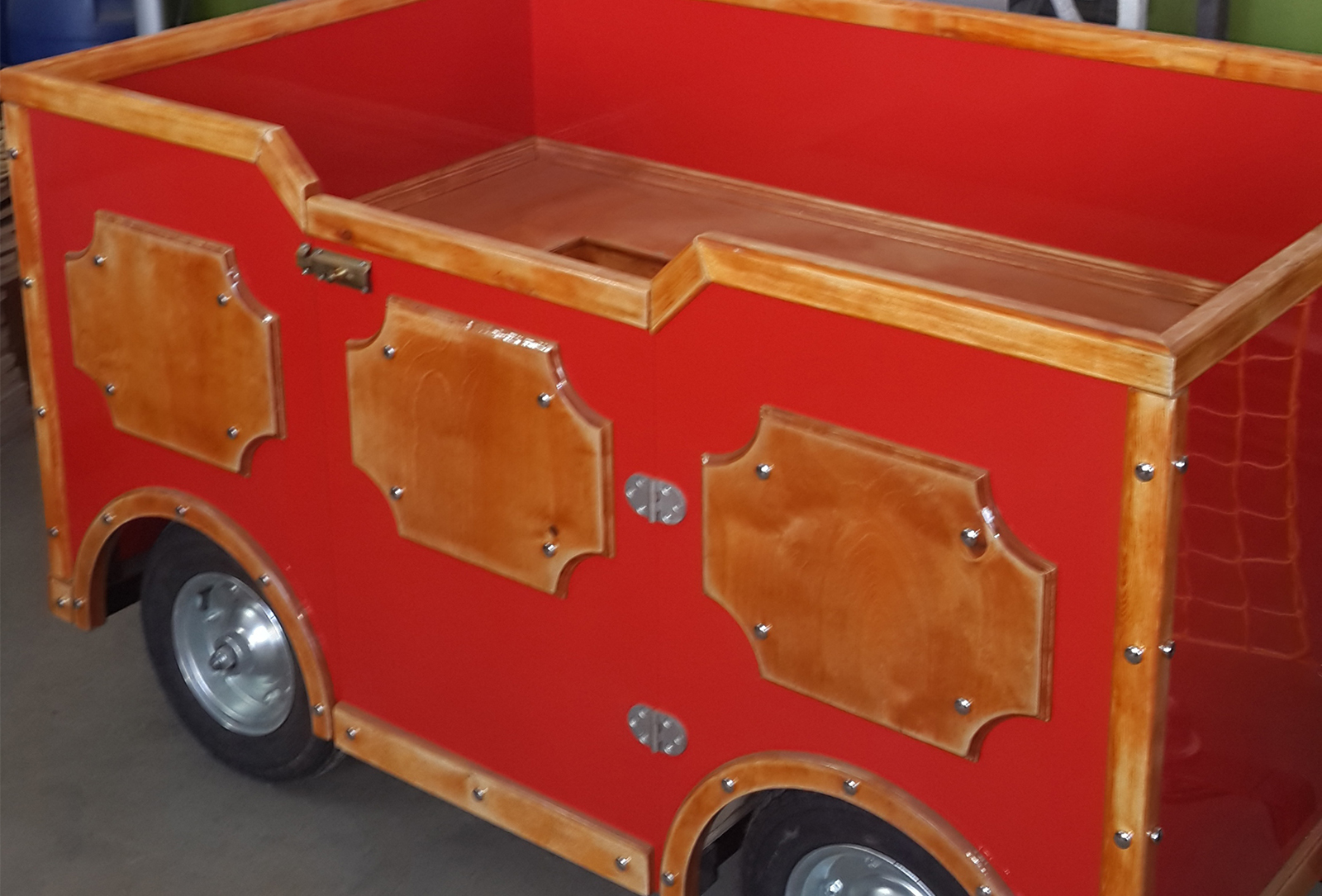

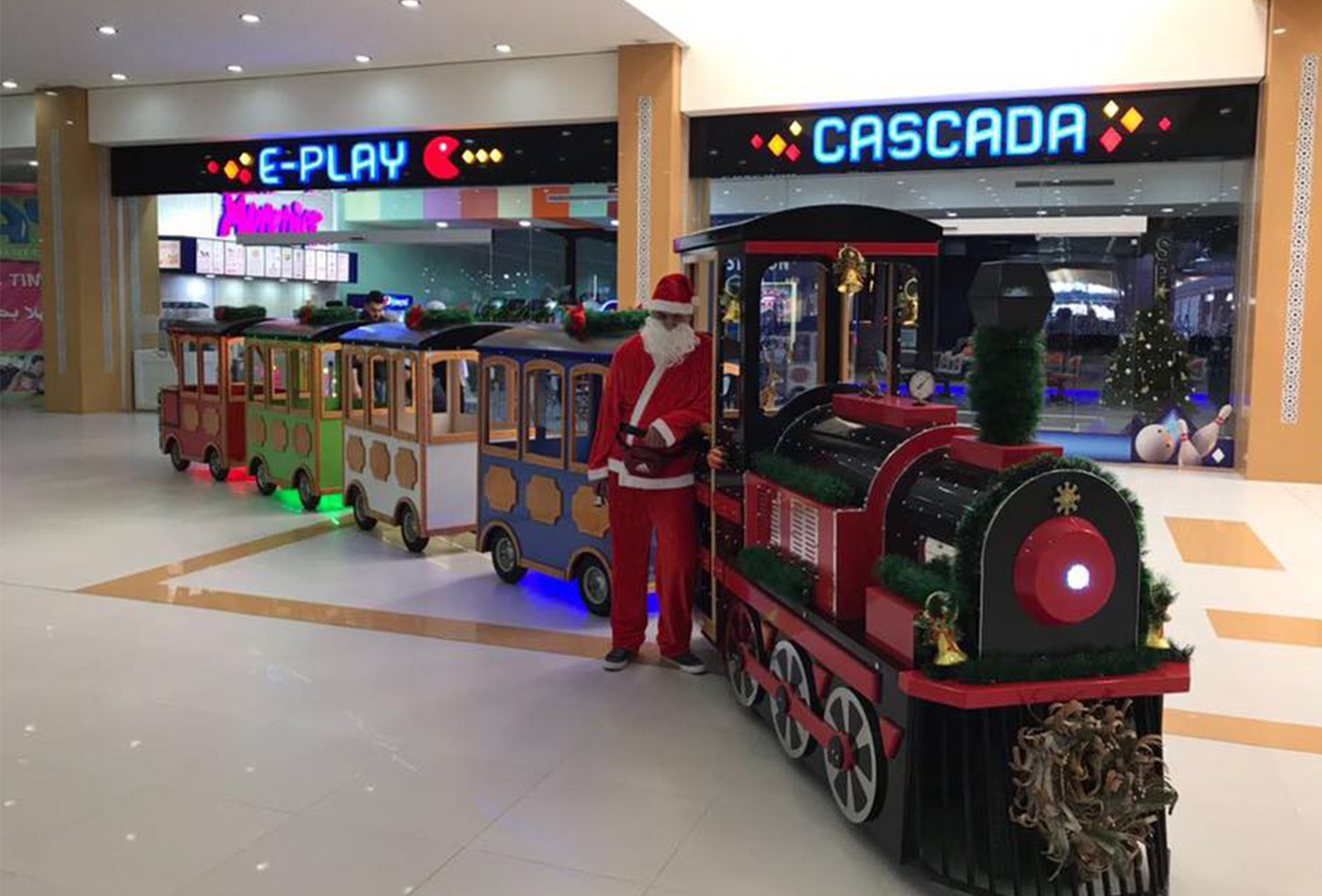

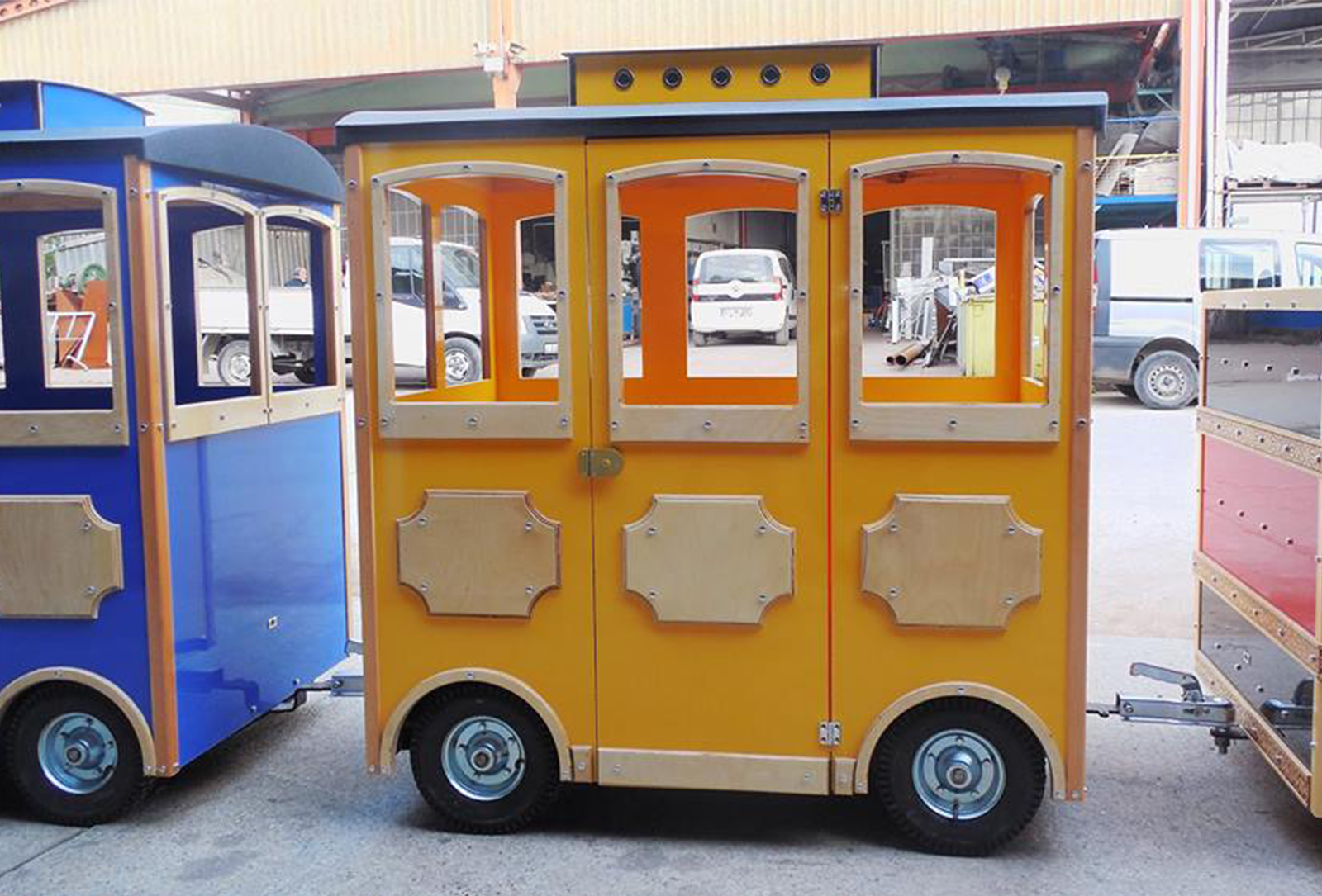

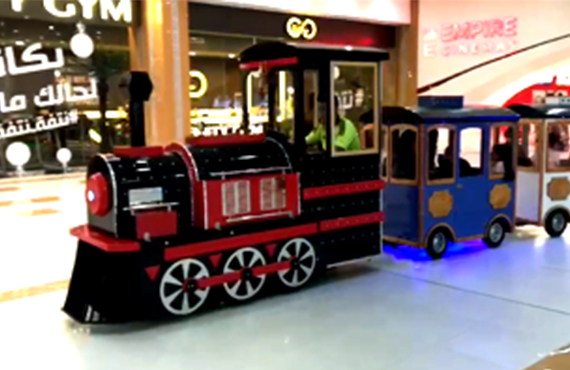

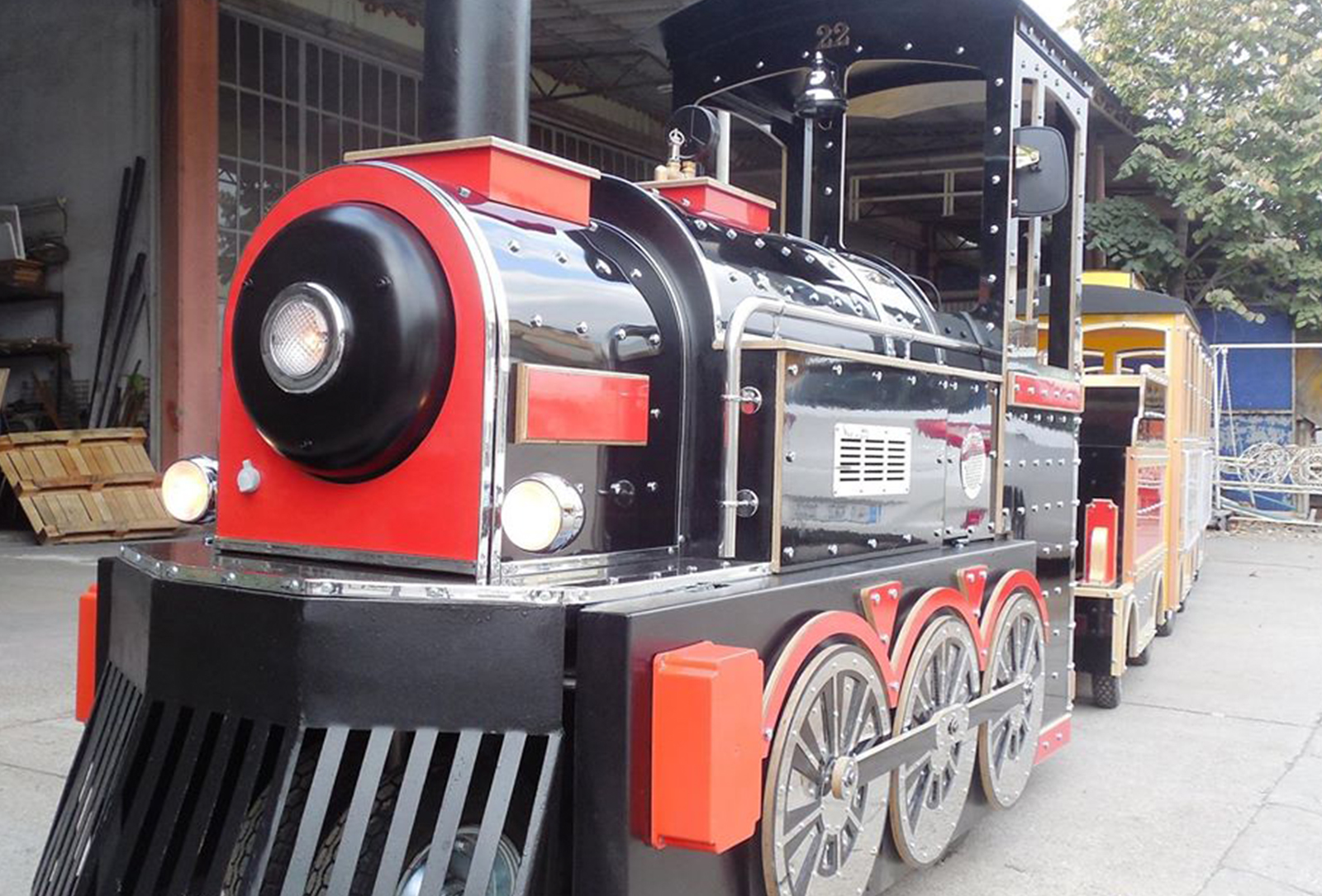

2) Mini Electric Trackless Trains

Obodus Electric trackless train is a total hand made creation with a 5 car configuration and is comprised of one locomotive, one open coal car wagon and 3 covered passenger wagons. OBODUS Train is suitable for indoor and outdoor use. The main frame of locomotives and wagons are reinforced steels and body is special Ce approved Marine woods against deformations. OBODUS mini electric trains is equipped with authentic wooden seating groups for the convenience of passengers. Obodus Trackless Trains has LED light animation, powerful speakers, mp3 player, steam and flame animation, mp3 player, four different voice (railway sound of the train horn etc.). With its quiet and safe working conditions, Obodus Mini Trains can work both indoor and outdoor areas, hotels, resorts, shopping centers.

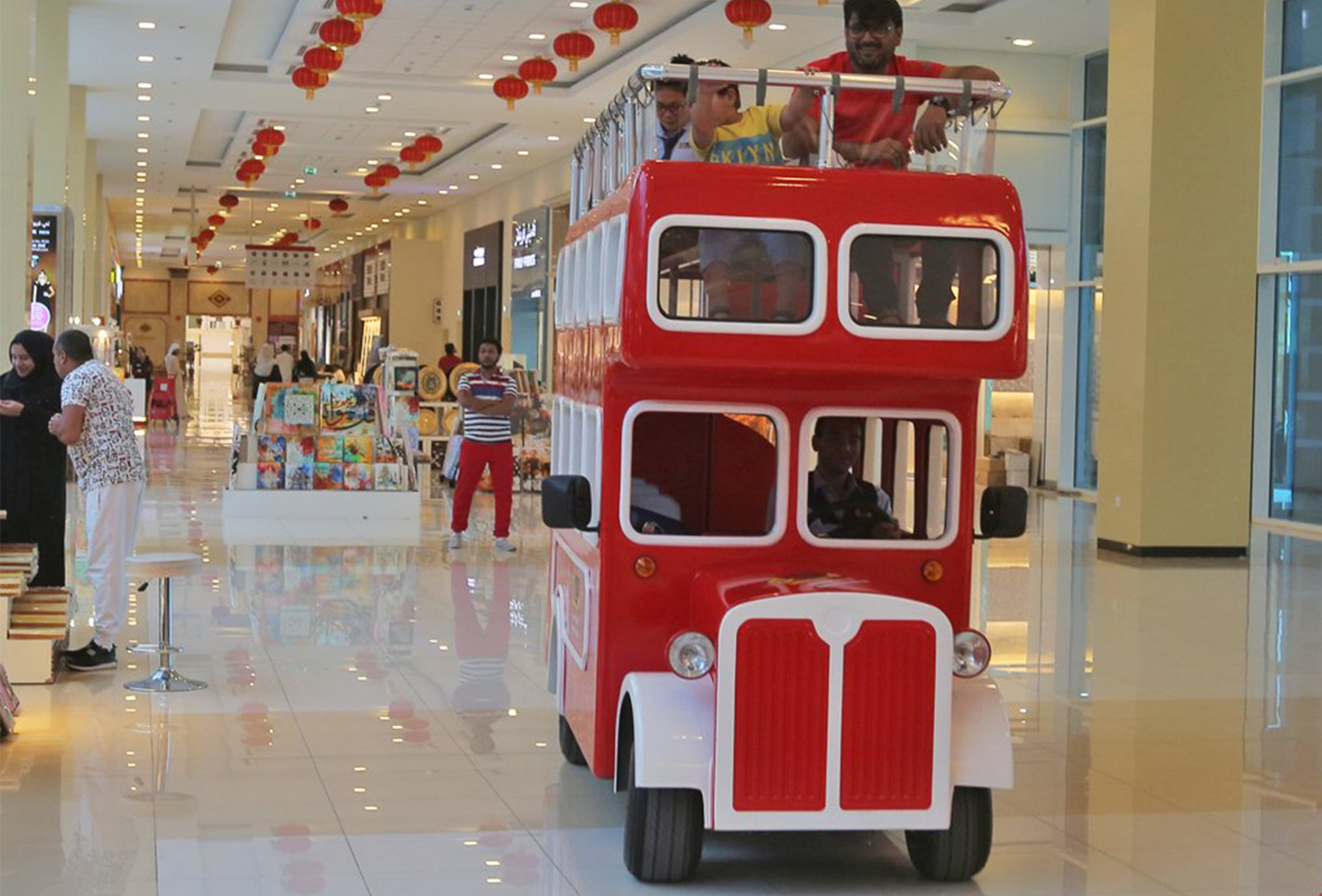

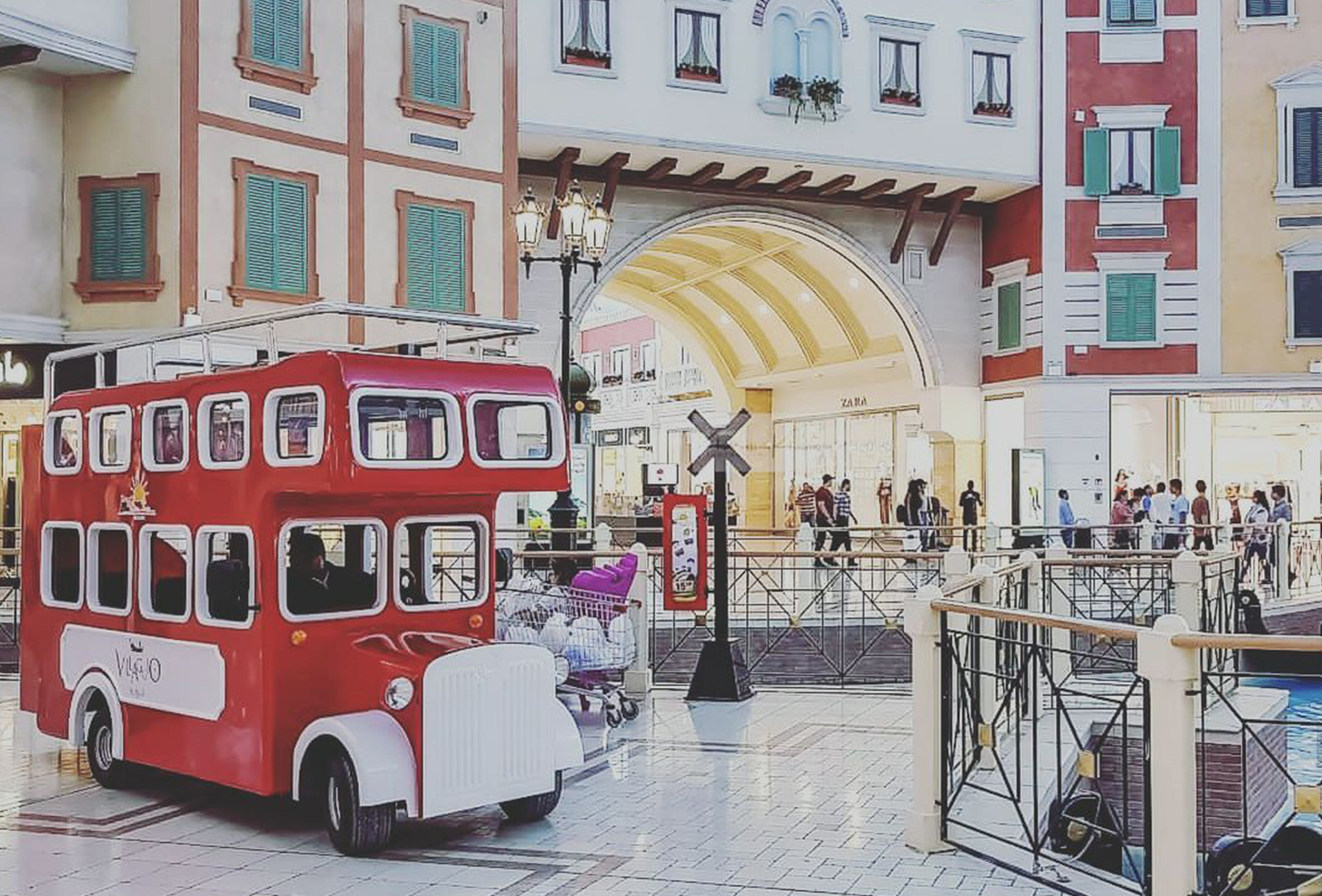

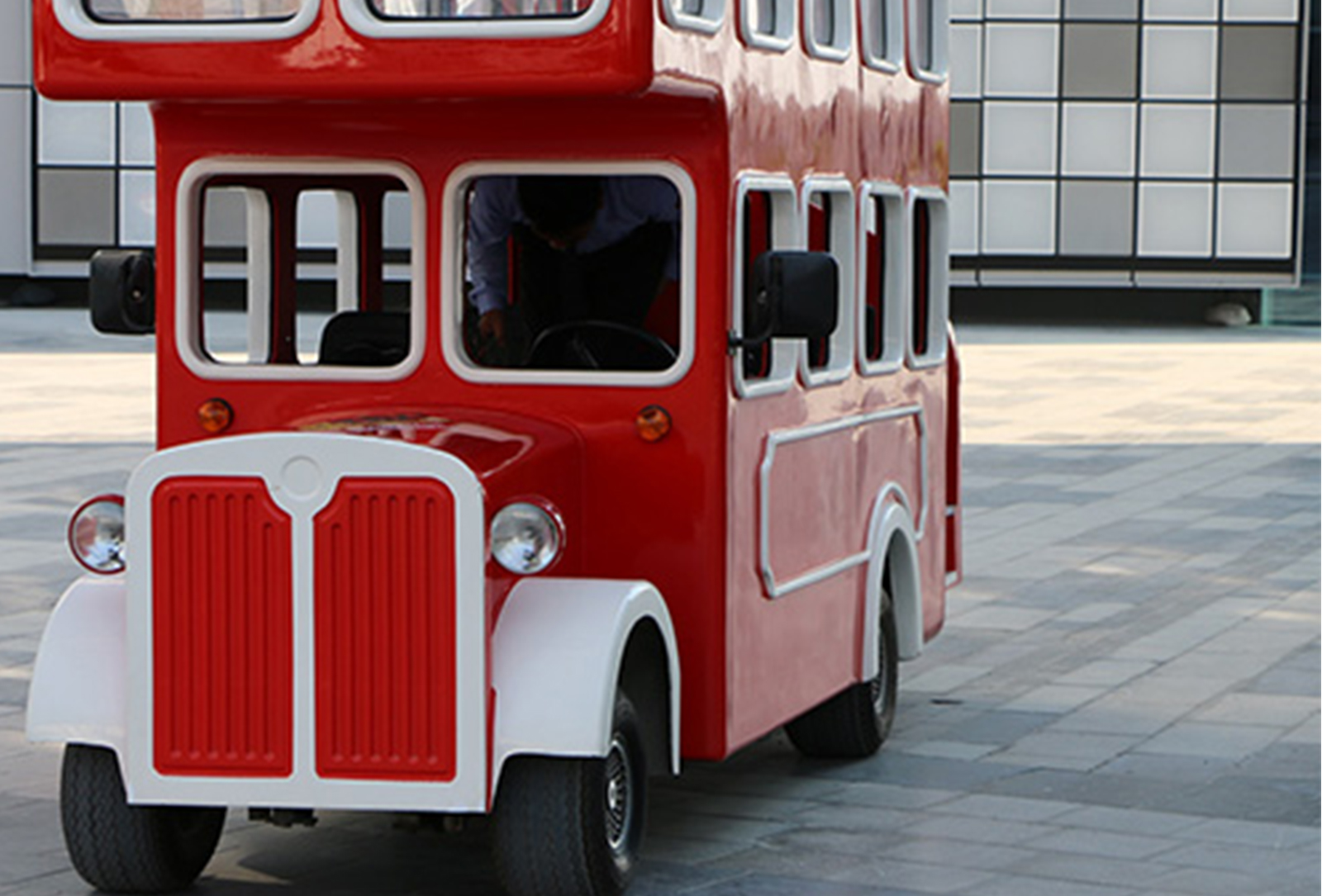

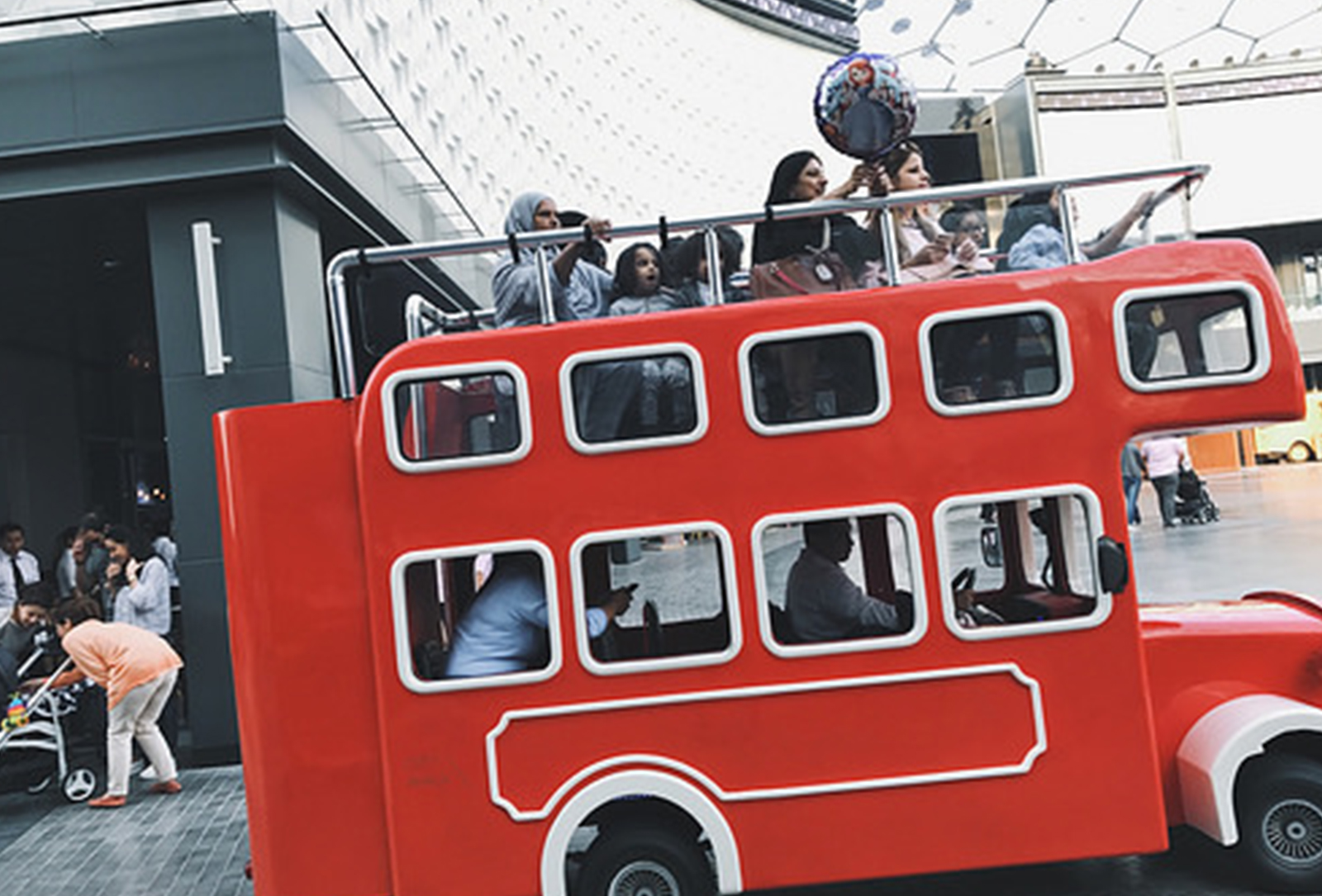

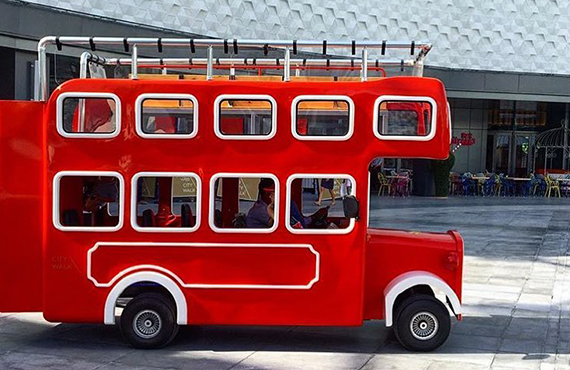

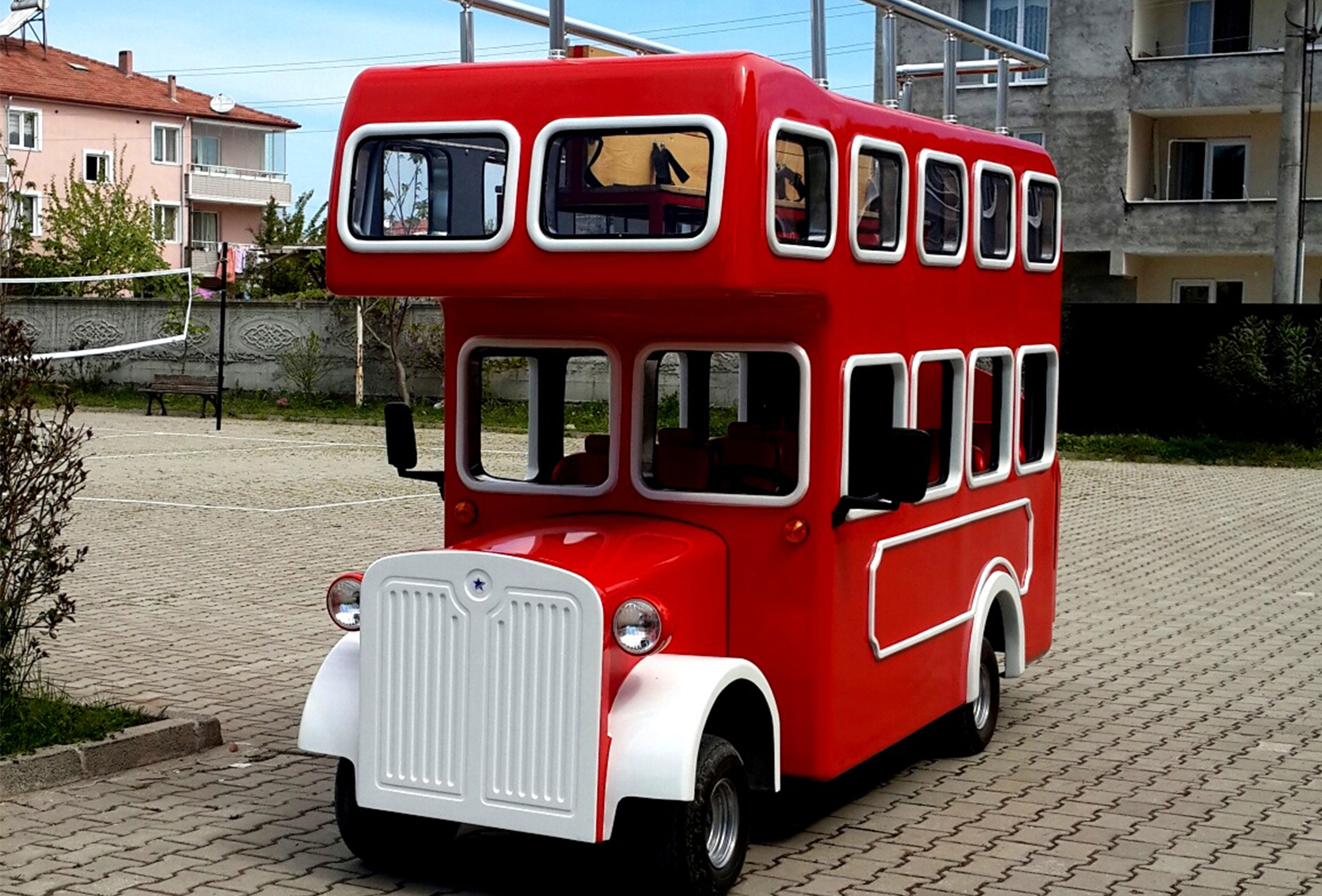

3) Mini Electric London Bus

Obodus Mini London Bus, It’s a miniature copy of the nostalgic double decker bus in London/U.K. Our professionally produced body is made of Fiber Glass polyester and the chassis part is made of reinforced 80 NPI corrosion resist coated steel construction. The Bus is made from environmentally friendly, durable materials that is harmless to children’s health. This bus has LED light animation, powerful speakers and mp3 player and Safety belts in each seats and a safety camera system to watch upper deck during operation. OBODUS Mini London Bus is Designed for children and can be used anywhere indoor or outdoors, such as shopping malls, zoos and parks, resorts, hotels, etc… It is a product that children can have an unforgettable time with their parents.

GENERAL SPECS

KIND OF VEHICLE

48 V 17 kids capacity Double deck London bus

Type

Electrical Entertainment vehicle for kids

Net Weight

-

Battery Weight

(25kgx4) 100 kg

Wheels Type

Golf – 18x8.5-8

Seat Capacity

18 Maximum

Colour

Red

POWER SPECS

Motor

4kW 48V Golf Car Motor

Motor Power

4 kW

Motor Controller Unit

4kW 48V Golf Car Motor Controller Unit

Battery

4x(12V 150A )

Charging Unit

MRS Battery Charge Unit

CHASSIS

Frame

Steel profiles

Body Cover

Fiberglass

Steering Wheel (Yönlendirme)

Differential controlled

Brake System

Self Adjusted ,Mechanical

Seats

Wooden and Frp

Lighting inside

LEd Lighting

PERFORMANCE

Max Forward Speed

26 km/h

Max Reverse driving Speed

15 km/h

Turning  Grade

4,5 m

Full Charge Time

6 hours

Distance of Drive with full Charge

40-50 km

Slope Climbing

12 degree

Motor Brake

Optional  in request

DIMENSIONS

Length

390 cm

Wide

130 cm

Height

242 cm

Height From Ground Surface

15.5 cm

Wheels (Numbers-kind)

4 -  Golf – 18x8.5-8

Minimum height from ground

12  cm

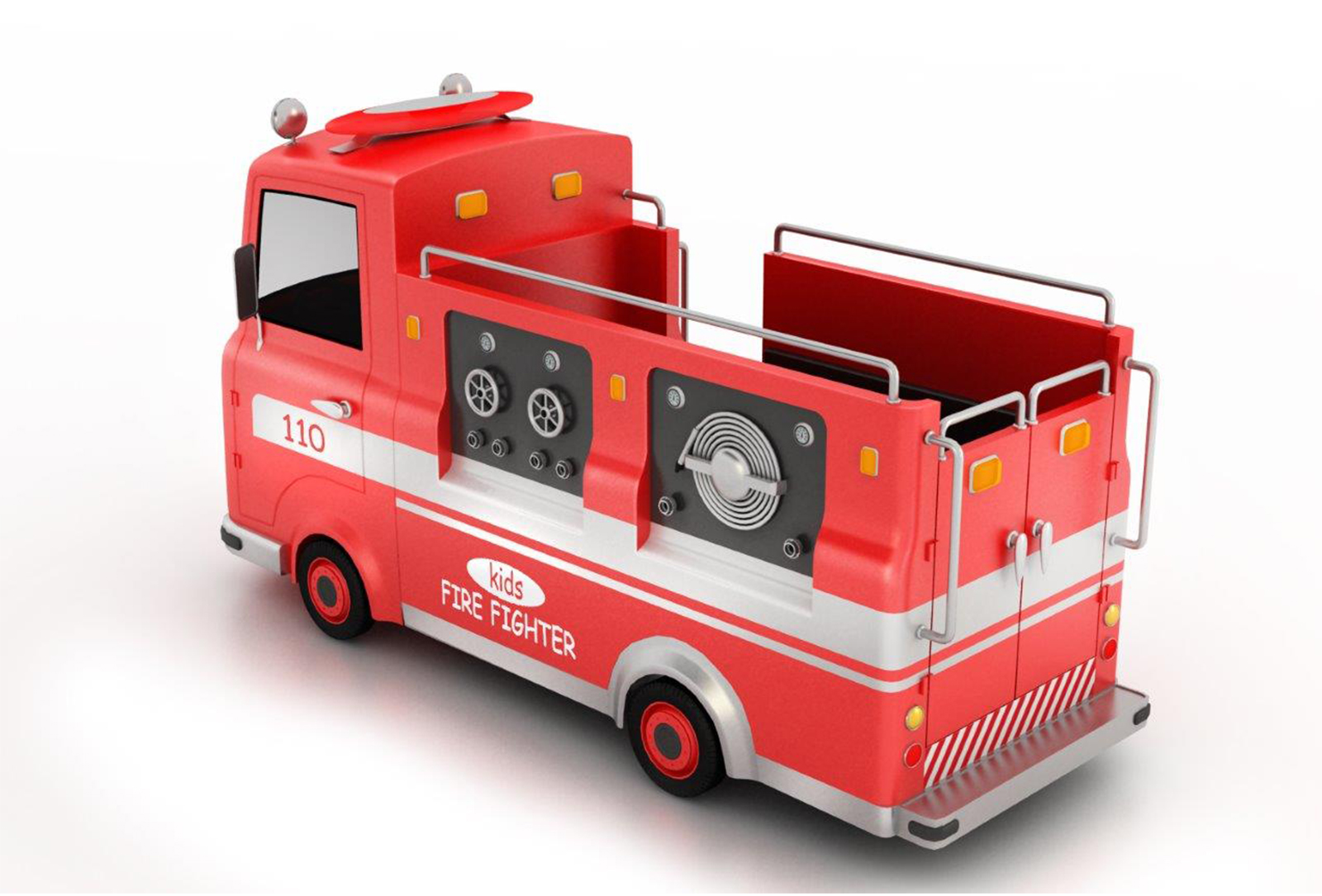

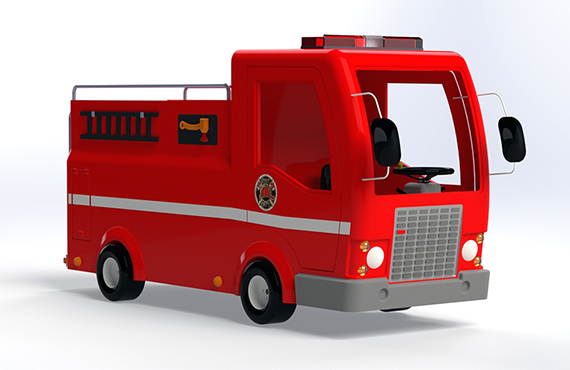

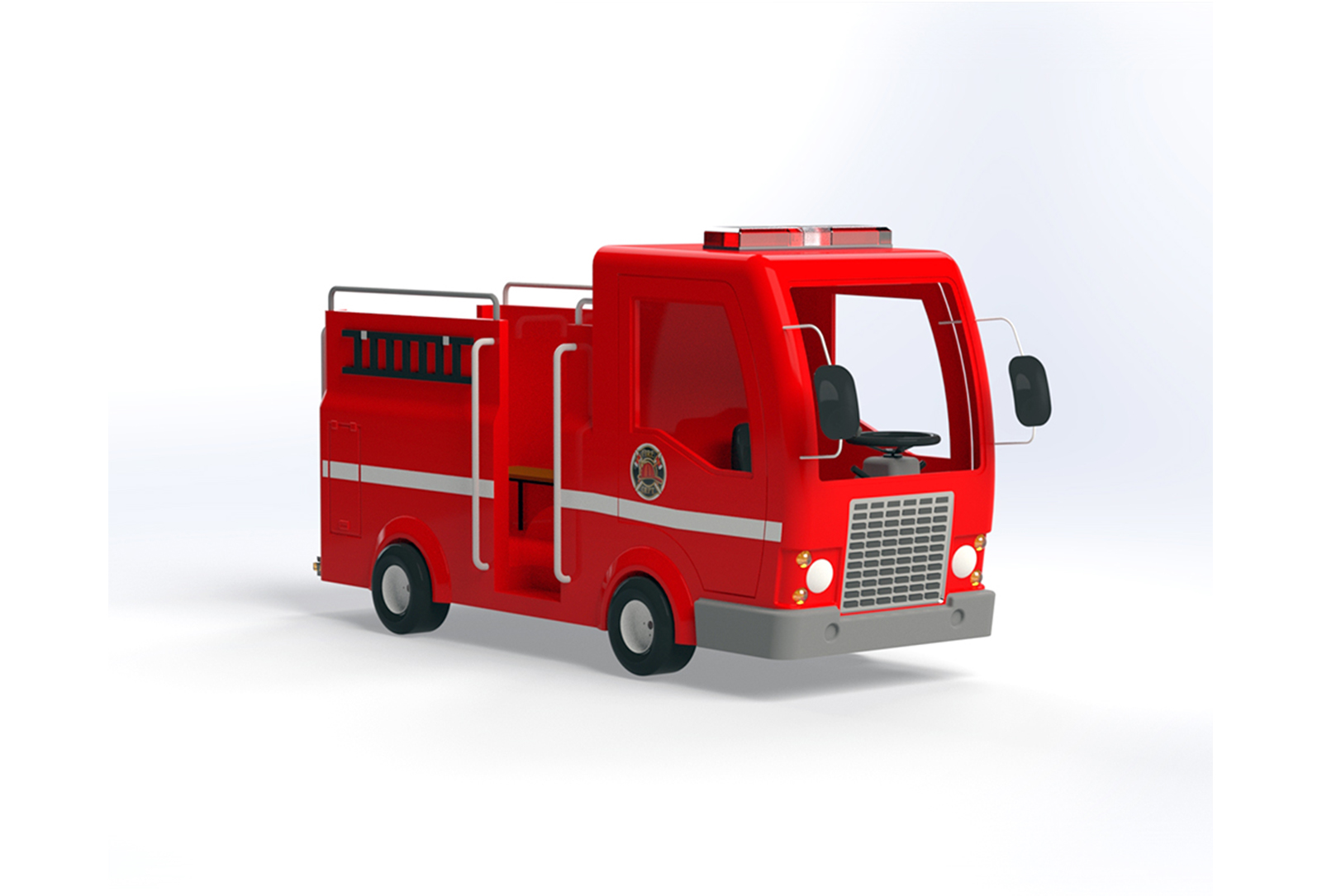

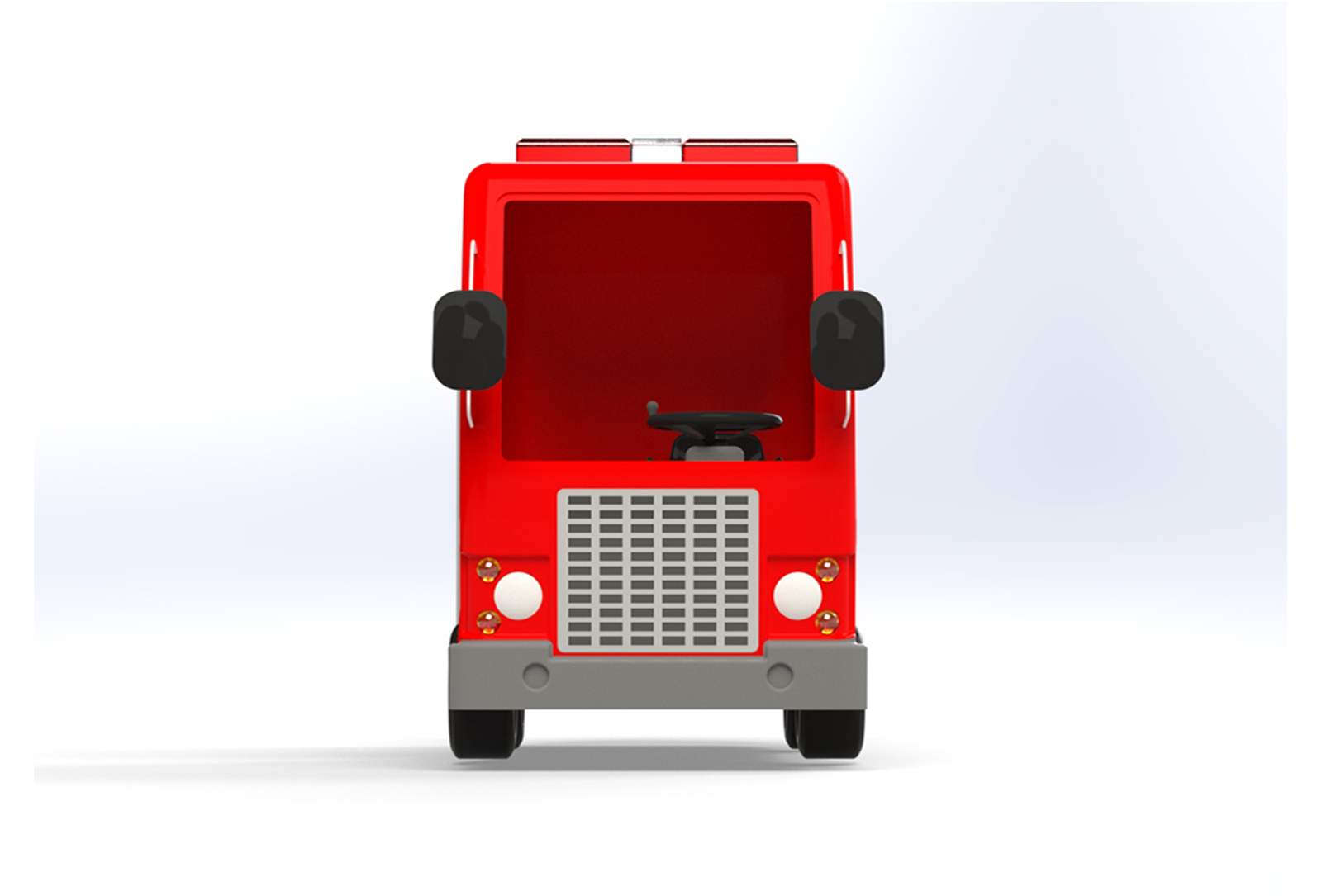

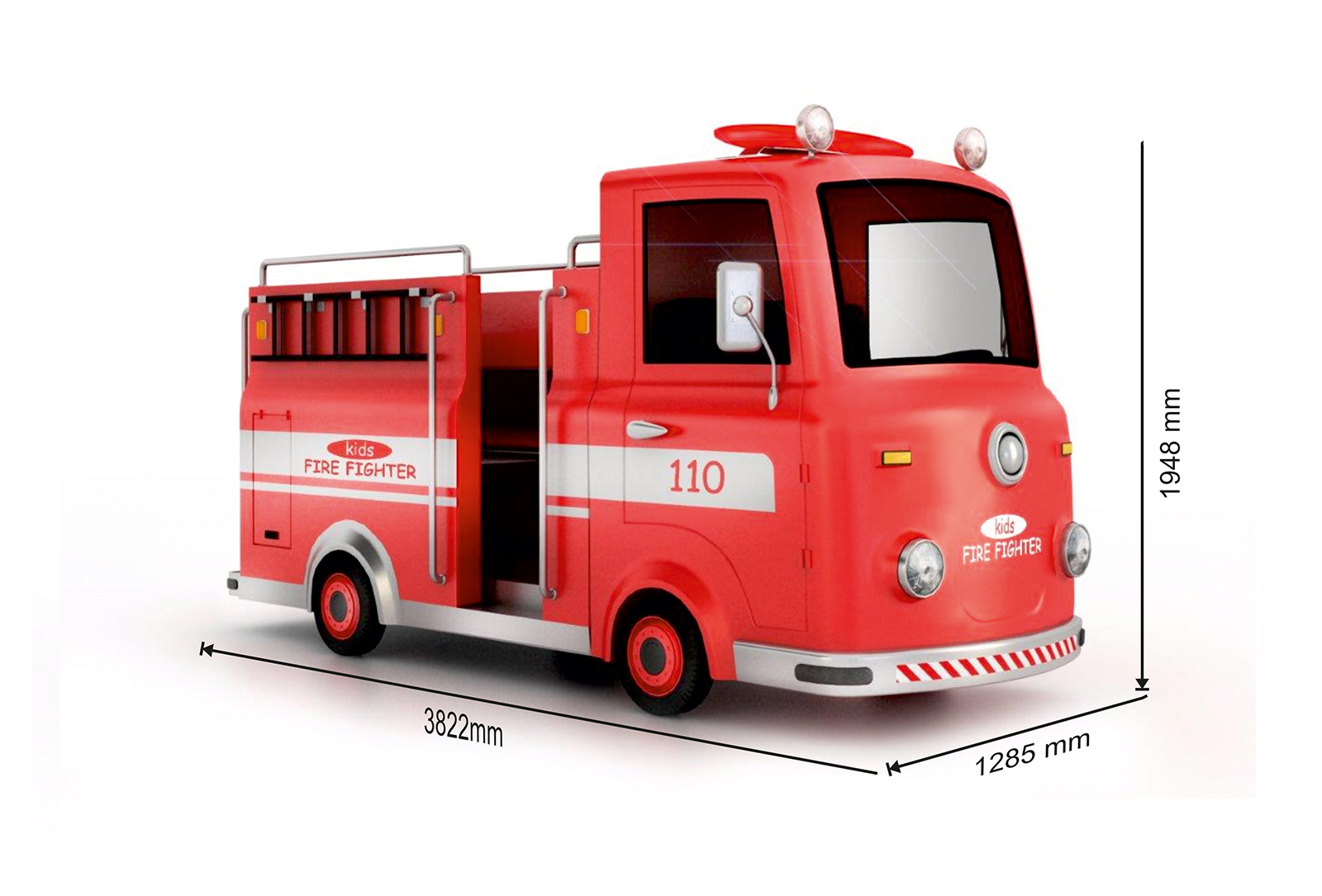

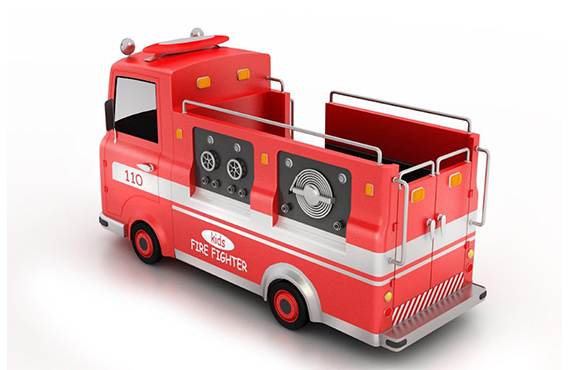

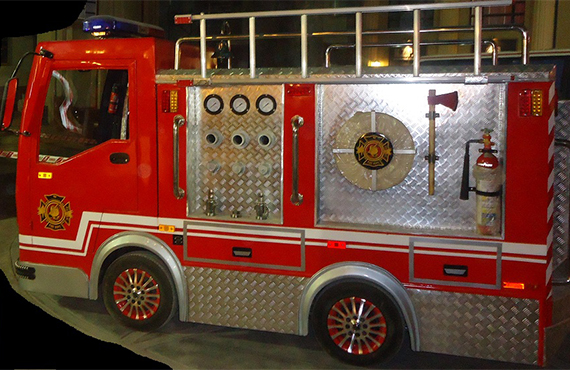

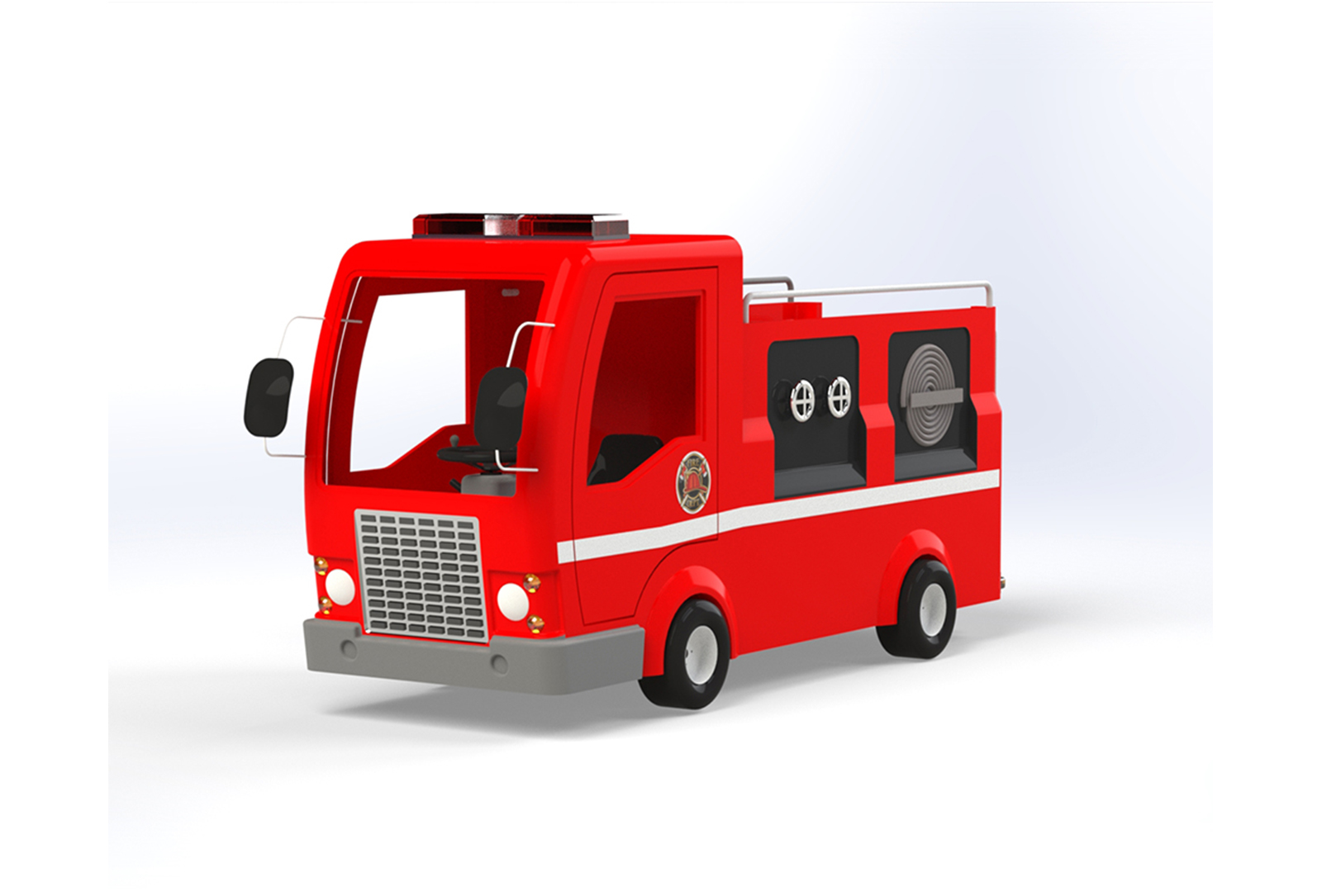

4) Mini Fire Truck

Obodus Mini Fire Truck, It’s a miniature copy of the original Fire Trucks and designed to be used for education and development of kids and to teach them about the basic rules and duties of a Fireman. Our professionally produced body is made of Fiber Glass polyester and the chassis part is made of reinforced 80 NPI corrosion resist coated steel construction. To give a real fire truck feeling Obodus mini fire trucks are fully equipped with original fireman outfits and accessories such as extinguishers, water hoses, axes, valves, Fire truck original Siren and Alarms..etc. Obodus Mini Fire truck can be used indoor or outdoor areas, kids educational training centers, kids traffic education centers, shopping malls etc..

GENERAL SPECS

TYPE OF VEHICLE

48 V

TYPE

ELECTRICAL FIRE TRUCK

NET WEIGHT

-

BATTERY WEIGHT

(25kgx4) 100 kg

KIND OF TIRES

Golf – 18x8.5-8

SEAT CAPACITY

10-12

COLOUR

RED

POWER SPECS

Motor

4kW 48V Golf Car Motor

Motor Power

4 kW

Motor Control Driver Unit

4kW 48V Golf Car Motor Controller Unit

Battery

4x( XINNENG 12V 150A )

Charger

GPS Battery Charge Unit / Outboard !

CHASSIS

Frame

Steel Profiles/Our own production not a ready tow truck!

Body Cover

Fiberglass

Steering Wheel Control

Differantial / WHOLE STYLE REAR STEEL AXLE REDUCTION RATIO 12:49

Brake System

Sel Adjusted,Mechanical,FOUR WHEELED MECHANICAL STEEP ROPE DRUM SYSTEM

Seats

Leather Covered

Interior Lighting

Led Lightings on our desing in suitable places

PERFORMANCE

Max Forward speed

22 km/h

Max Reverse Driving Speed

15 km/h

Maximum turning Radius

4,5 m

Full charging Time

6 h

Range Loaded

50-60 km

Dashboard

Our Standart Dashboard with battery showers

Max. Climbing Ability

20%

Motor Brake

Optional on request

DIMENSIONS

Lenght

3720 mm

Width

1280 mm

Height

1903 mm

Wheels (Numbers-Type)

4 -  Golf – 18x8.5-8

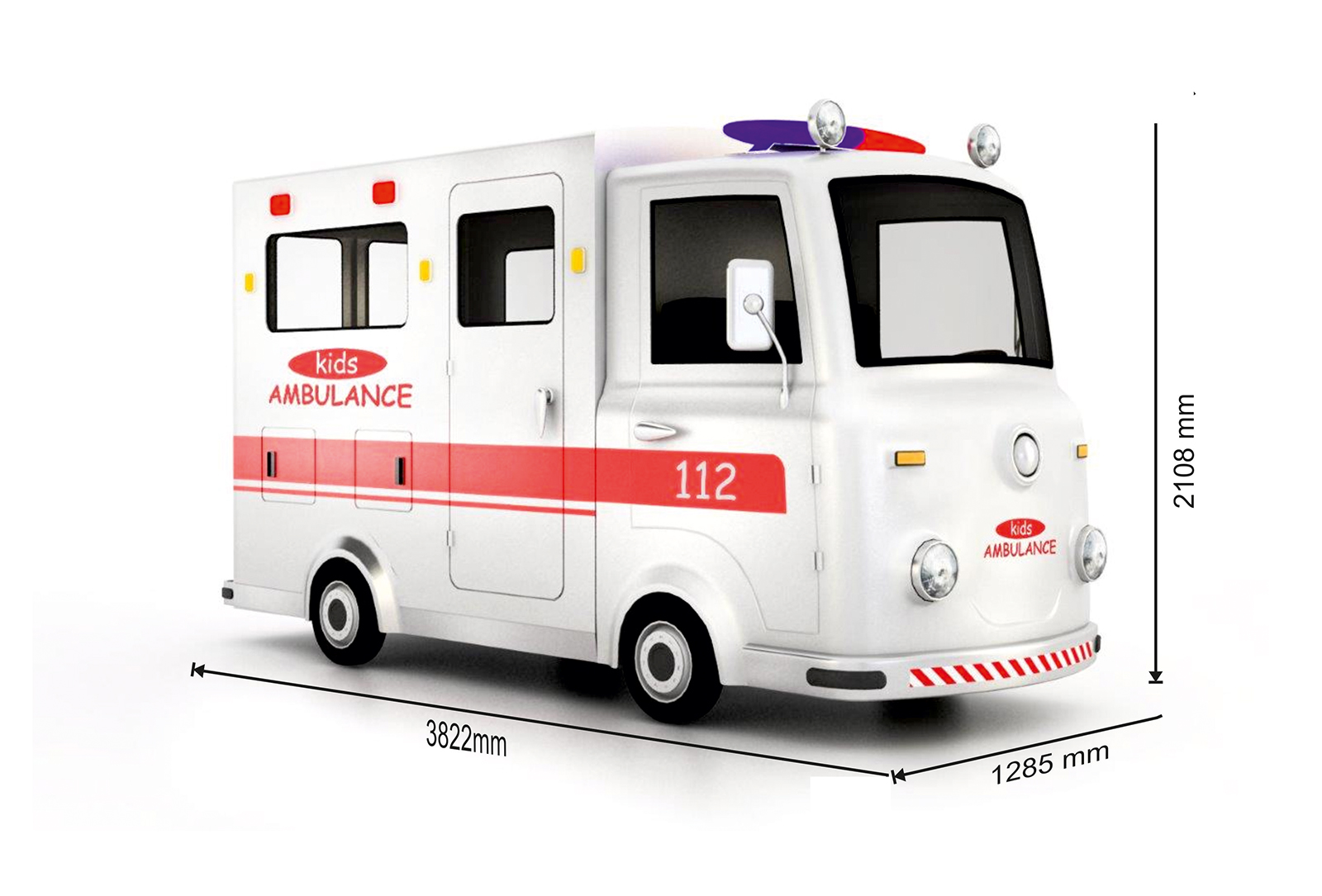

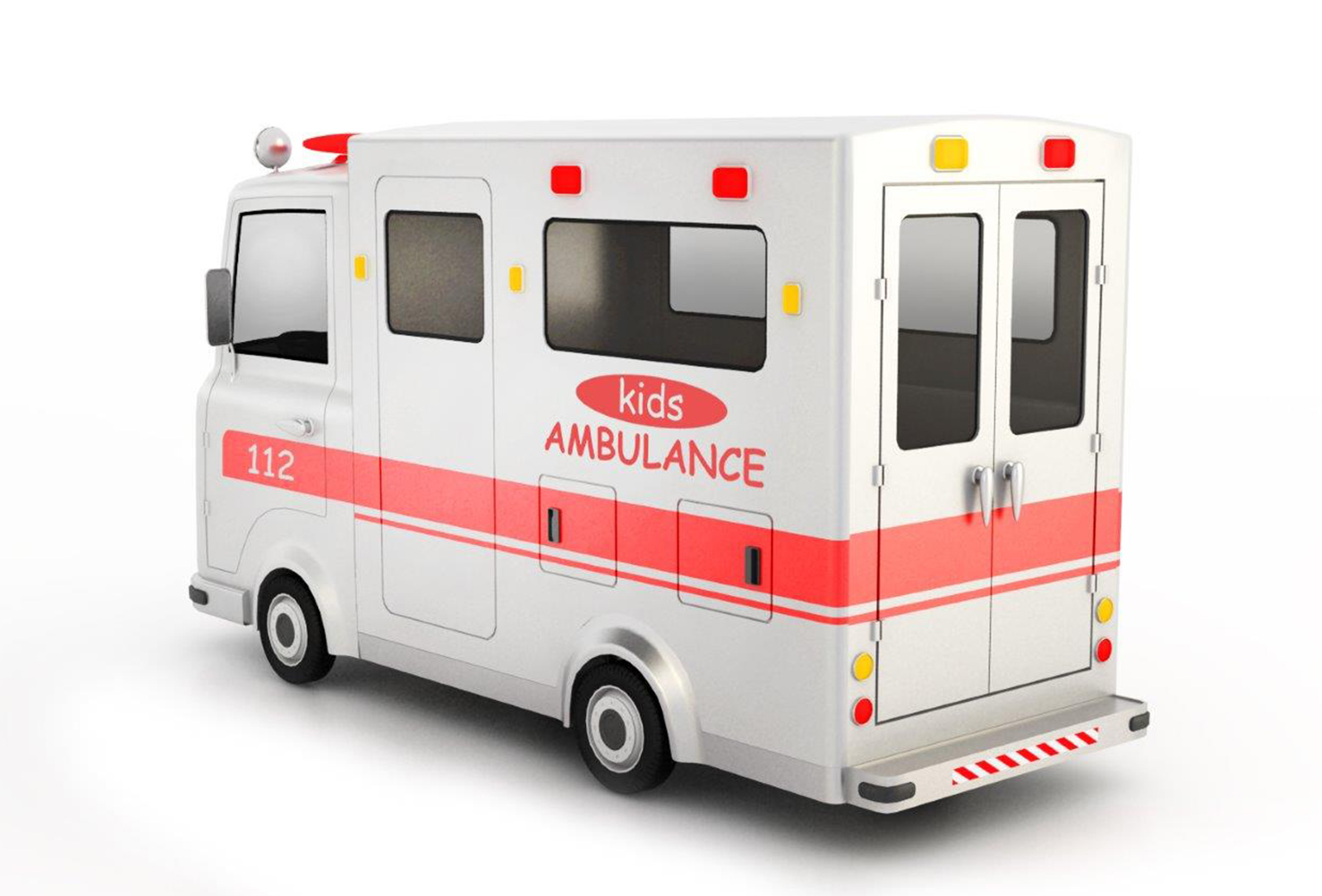

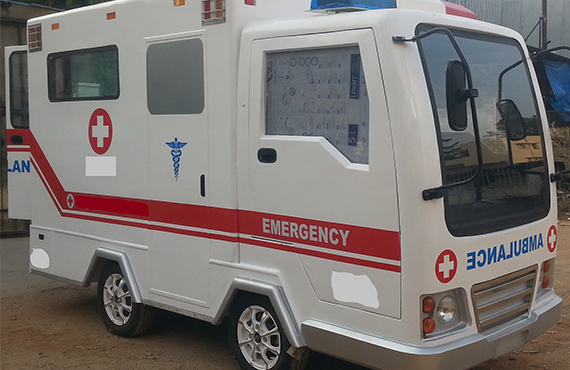

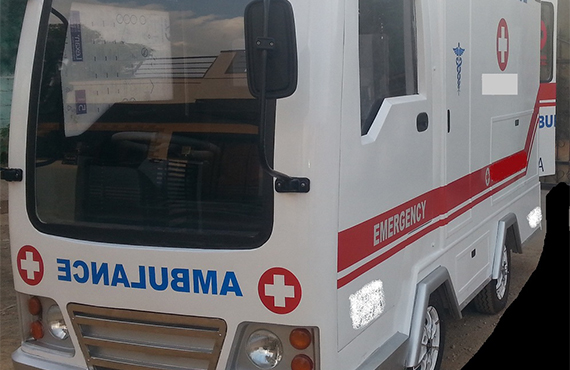

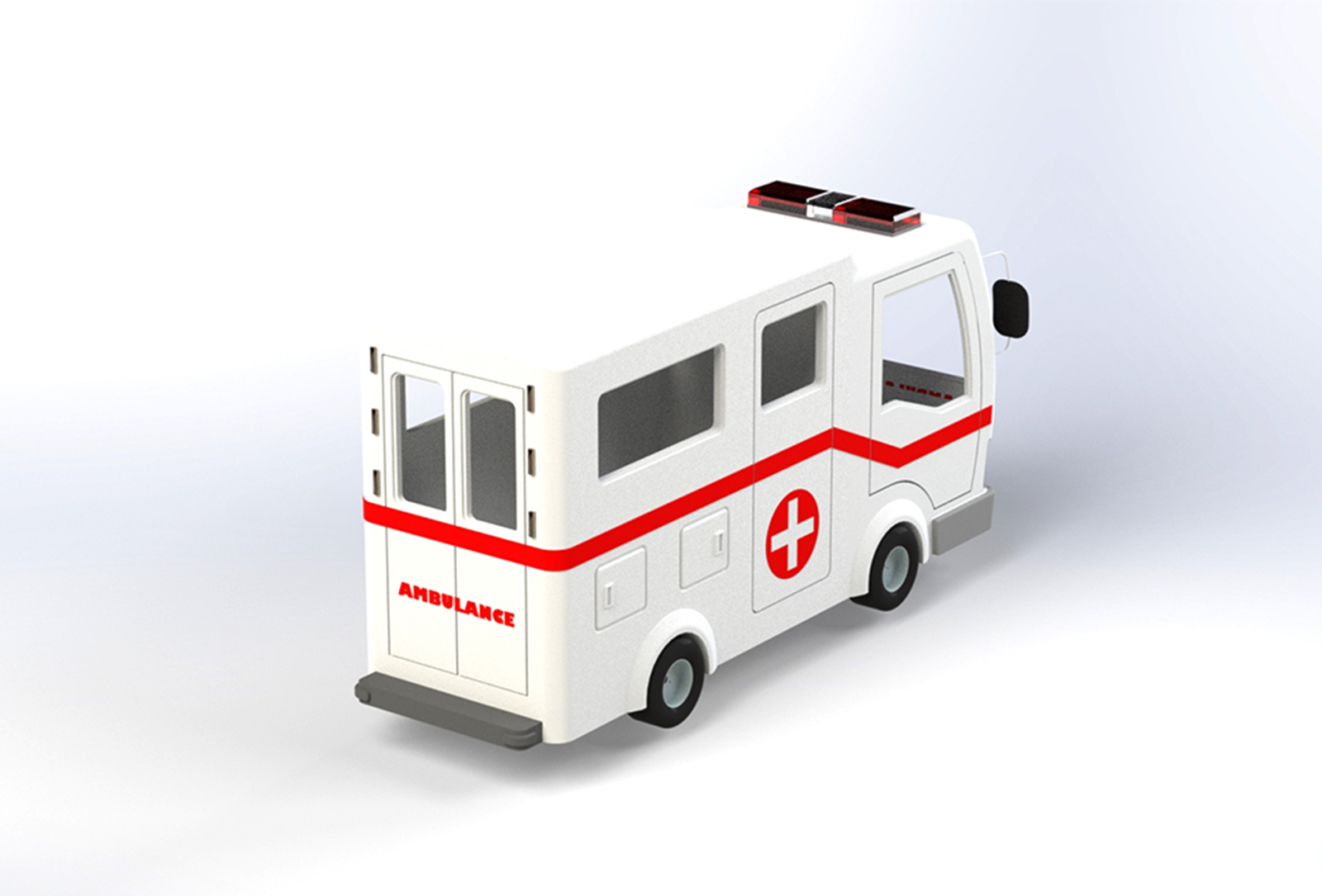

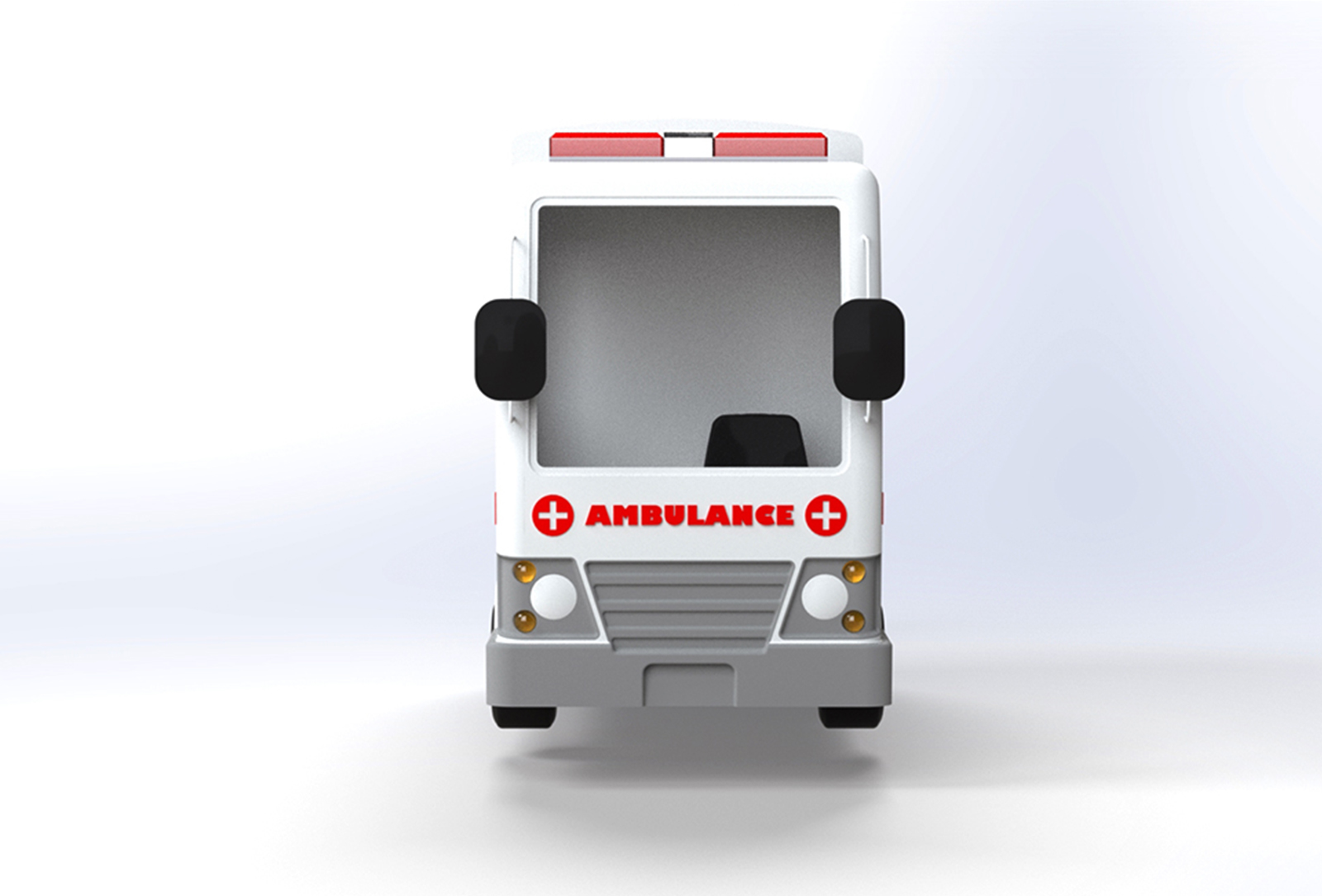

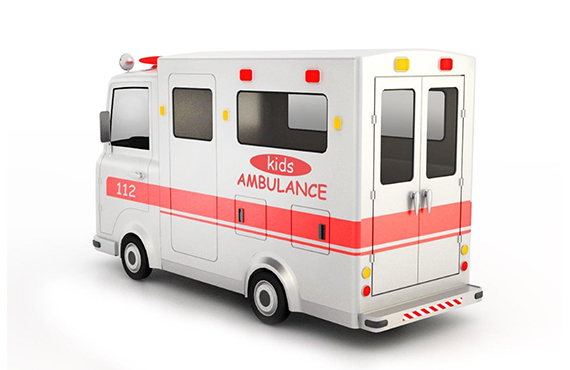

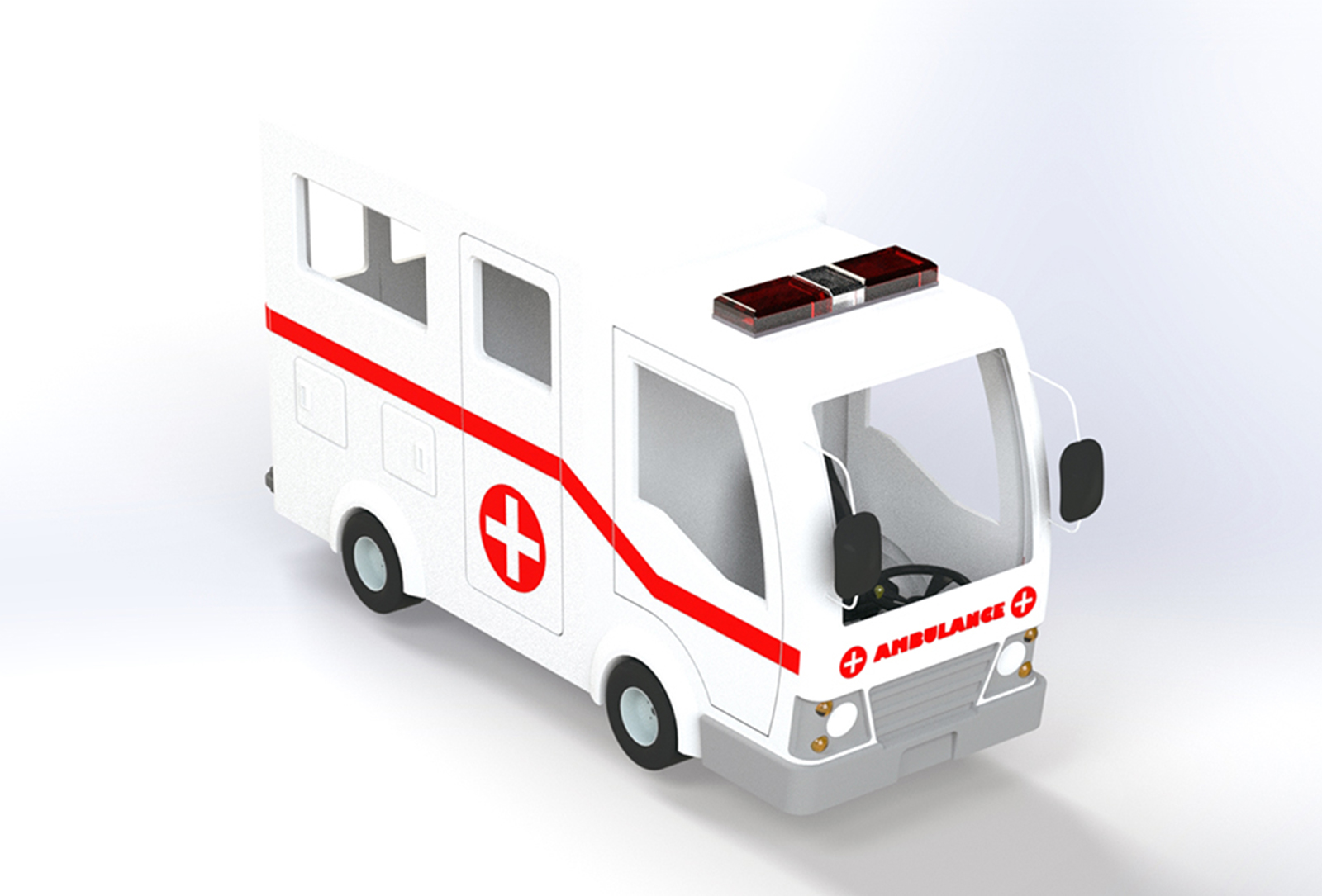

5) Mini Electrical Ambulance

Obodus Mini Ambulance, It’s a miniature copy of the original Ambulance and designed to be used for education and development of kids and to teach them about the basic rules and duties of Doctors and Nurses. Our professionally produced body is made of Fiber Glass polyester and the chassis part is made of reinforced 80 NPI corrosion resist coated steel construction. To give a real ambulance feeling Obodus mini ambulances are fully equipped with original strecthers, first aid kids, oxygen tubes, serums, Ambulance original Siren and Alarms..etc. Obodus Mini Ambulances can be used indoor or outdoor areas, kids educational training centers, kids traffic education centers, shopping malls etc..

GENERAL SPECS

TYPE OF VEHICLE

48 V

TYPE

ELECTRICAL AMBULANCE

NET WEIGHT

-

BATTERY WEIGHT

(25kgx4) 100 kg

KIND OF TIRES

Golf – 18x8.5-8

SEAT CAPACITY

5 +  STRECTHER

COLOUR

WHITE

POWER SPECS

Motor

4kW 48V Golf Car Motor

Motor Power

4 kW

Motor Control Driver Unit

4kW 48V Golf Car Motor Controller Unit

Battery

4x(12V 150A )

Charger

GPS Battery Charge Unit / Outboard !

CHASSIS

Frame

Steel Profiles/Our own production not a ready tow truck!

Body Cover

Fiberglass

Steering Wheel Control

Differantial / WHOLE STYLE REAR STEEL AXLE REDUCTION RATIO 12:49

Brake System

Sel Adjusted,Mechanical,FOUR WHEELED MECHANICAL STEEP ROPE DRUM SYSTEM

Seats

Leather Covered

Interior Lighting

Led Lightings on our desing in suitable places

PERFORMANCE

Max Forward speed

22 km/h

Max Reverse Driving Speed

15 km/h

Maximum turning Radius

4,5 m

Full charging Time

6 h

Range Loaded

50-60  km

Dashboard

Our Standart Dashboard with battery showers

Max. Climbing Ability

20%

Motor Brake

Optional on request

DIMENSIONS

Lenght

3720 mm

Width

1280 mm

Height

2074 mm

Wheels (Numbers-Type)

4 -  Golf – 18x8.5-8
