Eccentric Moment (Kgm)

8

Centrifugal Force (kN)

604

Max. Amplitude (mm)

14,5

Speed (d/d)

2500

Max. Pulling Force (kN)

175

Max. Pushing Force (kN)

90

Dynamic Weight (kg)

3200

Total Weight (kg)

3500

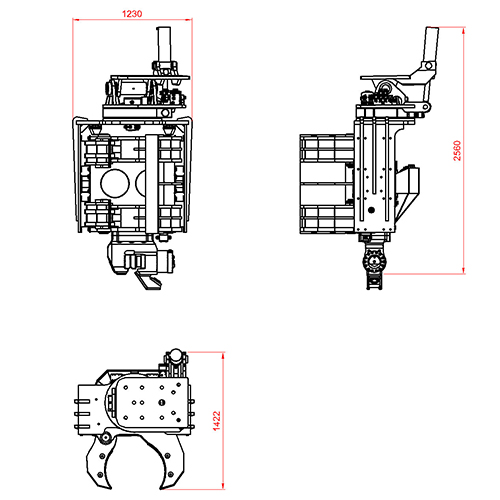

Total Lenght (mm)

1350

Total Width (mm)

1422

Total Height (mm)

2560

Flow (Lt/min)

240

Working Pressure (bar)

300

Power (kW)

165

Hydromotor

F12-40 x 2 peices

Oil Pump

+

Number of Cylinders

3

Rotation-Swing Angles(°)

360-30

Suitable Excavator class

32 Tons and Over

Modular Clamp  system

Suitable for Sheet piline and tubular piling

Auto Drive System

Optional
